Flat
Sleek, depth-free design.
.png?width=150&name=LEFT%20PERSPECTIVE%20(10).png){kind=icon}
%20(1).png?width=150&name=LEFT%20PERSPECTIVE%20(3)%20(1).png){kind=icon}
%20(1).png?width=150&name=LEFT%20PERSPECTIVE%20(2)%20(1).png){kind=icon}
%20(1).png?width=150&name=LEFT%20PERSPECTIVE%20(5)%20(1).png){kind=icon}
.jpg?width=750&name=2101521818087220494%20(1).jpg)
.png?width=412&name=Meet%20our%20team%20(2).png){kind=icon}
Premier Series
FLAT

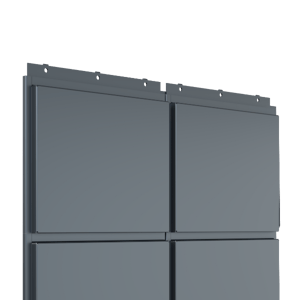

Our Origin Premier Flat panels feature a sleek, no-depth profile that delivers a clean, contemporary look. Perfect for modern architecture, this design creates a refined aesthetic that emphasizes simplicity and elegance.
Non-Combustible
Panels are made from a single skin of metal. Therefore, they are non-combustible and do not contribute to flame spread.
Not Laminated
The panel is not laminated and does not have a plastic core. Therefore, panels can never delaminate..png?width=75&name=easy%20install%20(1).png)
Easy Installation
The panel’s one-piece design is optimized to install easily onto a variety of substrates.
No Sealants or Gaskets
The panel utilizes dry-joint rainscreen technology to eliminate sealants and gaskets in panel-to-panel connections.
Panel Parameters & Technical Information
.080" Aluminum
Technical Information
| Material | .080" Post Anodized Aluminum, .080" Post Painted Aluminum |
| System Depth | 1-1/4" nominal standard |
| Material Weight | Less than 2 lbs. / s |
| Panel Joints | 5/8" nominal (1/8" - 1" available |
| Material Finish | 70% PVDF | 100% FEVE, AAMA 2605 |
| Warranty | 20 years for paint | 2 years for MFG |
Panel Parameters & Technical Information
.125" Aluminum
Technical Information
| Material | .125" Post Anodized Aluminum, .125" Post Painted Aluminum |
| System Depth | 1-1/2" nominal standard |
| Material Weight | Less than 2 lbs. / s |
| Panel Joints | 5/8" nominal (1/8" - 1" available |
| Material Finish | 70% PVDF | 100% FEVE, AAMA 2605 |
| Warranty | 20 years for paint | 2 years for MFG |
Panel Parameters & Technical Information
1.0mm NedZink
Technical Information
| Material | 1.0mm Zinc |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 2 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Naturel | Neo | Noir | Nuance |
| Warranty | NedZink - Material, 10 years | 2 years MFG |
Panel Parameters & Technical Information
1.5mm NedZink
Technical Information
| Material | 1.5mm Zinc |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 2 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Naturel | Neo | Noir | Nuance |
| Warranty | NedZink - Material, 10 years | 2 years MFG |
Panel Parameters & Technical Information
18GA Weathering Steel
Technical Information
| Material | 18 GA | A606-4 Weathering Steel |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 3 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Mill Steel - Naturally Weathering |
| Warranty | 1 year for MFG |
Panel Parameters & Technical Information
16GA Weathering Steel
Technical Information
| Material | 16GA | A606-4 Weathering Steel |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 3 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Mill Steel - Naturally Weathering |
| Warranty | 1 year for MFG |
Panel Parameters & Technical Information
18GA Stainless Steel
Technical Information
| Material | 18 GA | 316 Stainless Steel |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 3 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Polish, Brushed, Angel Hair, 2B |
| Warranty | 2 year for MFG |
Download our 'Technical Product Guide'
Learn more about our system, parameters and technical information..png?width=300&name=premier%20technical%20product%20guide%20(2).png)
