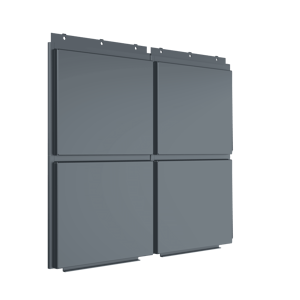

Flat
Sleek, depth-free design.
Manufactured for perfection.
Technical Information
Material | .080" Post Anodized Aluminum, .080" Post Painted Aluminum |
System Depth | 1-1/4" nominal standard, up to 6" |
Material Weight | Less than 2 lbs. / s |
Panel Joints | 5/8" nominal (1/8" - 1" available |
Material Finish | 70% PVDF | 100% FEVE, AAMA 2605 |
Warranty | 20 years for paint | 2 years for MFG |
Technical Information
Material | .125" Post Anodized Aluminum, .125" Post Painted Aluminum |
System Depth | 1-1/2" nominal standard, up to 8" |
Material Weight | Less than 2 lbs. / s |
Panel Joints | 5/8" nominal (1/8" - 1" available |
Material Finish | 70% PVDF | 100% FEVE, AAMA 2605 |
Warranty | 20 years for paint | 2 years for MFG |
Technical Information

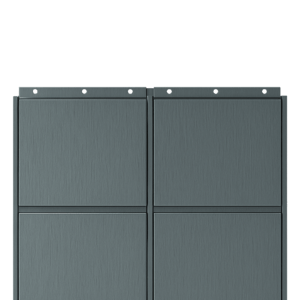

Material | 1.0mm Zinc |
System Depth | 1-1/4" nominal standard, up to 3" |
Material Weight | ≈ 2 lbs. / sf |
Panel Joints | 5/8" nominal (1/8" - 1" available) |
Material Finish | Naturel | Neo | Noir | Nuance |
Warranty | NedZink - Material, 10 years | 2 years MFG |
Technical Information
Material | 1.5mm Zinc |
System Depth | 1-1/4" nominal standard, up to 3" |
Material Weight | ≈ 2 lbs. / sf |
Panel Joints | 5/8" nominal (1/8" - 1" available) |
Material Finish | Naturel | Neo | Noir | Nuance |
Warranty | NedZink - Material, 10 years | 2 years MFG |
Technical Information

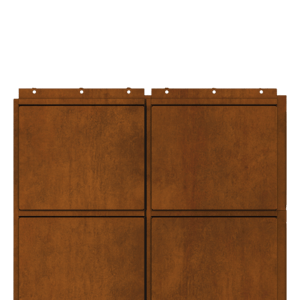

Material | 18 GA | A606-4 Weathering Steel |
System Depth | 1-1/4" nominal standard, up to 3" |
Material Weight | ≈ 3 lbs. / sf |
Panel Joints | 5/8" nominal (1/8" - 1" available) |
Material Finish | Mill Steel - Naturally Weathering |
Warranty | 1 year for MFG |
Technical Information
Material | 16GA | A606-4 Weathering Steel |
System Depth | 1-1/4" nominal standard, up to 3" |
Material Weight | ≈ 3 lbs. / sf |
Panel Joints | 5/8" nominal (1/8" - 1" available) |
Material Finish | Mill Steel - Naturally Weathering |
Warranty | 1 year for MFG |
Technical Information

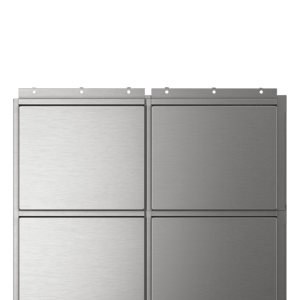

Material | 18 GA | 316 Stainless Steel |
System Depth | 1-1/4" nominal standard, up to 3" |
Material Weight | ≈ 3 lbs. / sf |
Panel Joints | 5/8" nominal (1/8" - 1" available) |
Material Finish | Polish, Brushed, Angel Hair, 2B |
Warranty | 2 year for MFG |
All the information, in one place.
Explore panel parameters and technical information for each of our panel types and materials within our Premier series.
