Flat
Sleek, flat design.
.png?width=300&name=ChatGPT%20Image%20Aug%2010,%202026,%2004_55_05%20PM%20(1).png)
.png?width=412&name=Meet%20our%20team%20(2).png){kind=icon}

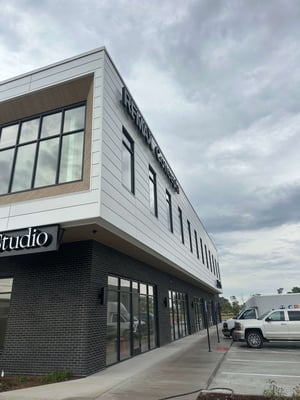

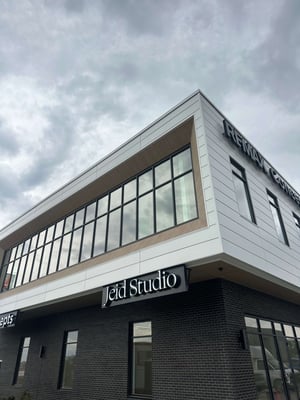

Portfolio Gallery

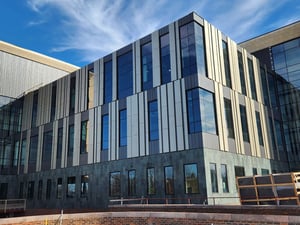

.jpg?width=300&name=2101521818087220494%20(1).jpg)
TOUCH
TOUCH

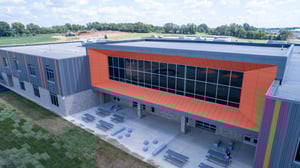

.jpg?width=300&name=DJI_0169%20(1).jpg)
TOUCH

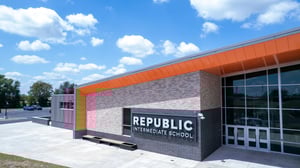

.jpg?width=300&name=DJI_0178%20(1).jpg)
TOUCH
TOUCH
Panel Parameters & Technical Information
.080" Aluminum
Technical Information
| Material | .080" Post Anodized Aluminum, .080" Post Painted Aluminum |
| System Depth | 1-1/4" nominal standard, Up to 6" |
| Material Weight | Less than 2 lbs. / s |
| Panel Joints | 5/8" nominal (1/8" - 1" available |
| Material Finish | 70% PVDF | 100% FEVE, AAMA 2605 |
| Warranty | 20 years for paint | 2 years for MFG |
Panel Parameters & Technical Information
.125" Aluminum
Technical Information
| Material | .125" Post Anodized Aluminum, .125" Post Painted Aluminum |
| System Depth | 1-1/2" nominal standard, up to 10" |
| Material Weight | Less than 2 lbs. / s |
| Panel Joints | 5/8" nominal (1/8" - 1" available |
| Material Finish | 70% PVDF | 100% FEVE, AAMA 2605 |
| Warranty | 20 years for paint | 2 years for MFG |
Panel Parameters & Technical Information
1.0mm NedZink
Technical Information
| Material | 1.0mm Zinc |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 2 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Naturel | Neo | Noir | Nuance |
| Warranty | NedZink - Material, 10 years | 2 years MFG |
Panel Parameters & Technical Information
1.5mm NedZink
Technical Information
| Material | 1.5mm Zinc |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 2 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Naturel | Neo | Noir | Nuance |
| Warranty | NedZink - Material, 10 years | 2 years MFG |
Panel Parameters & Technical Information
18GA Weathering Steel
Technical Information
| Material | 18 GA | A606-4 Weathering Steel |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 3 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Mill Steel - Naturally Weathering |
| Warranty | 1 year for MFG |
Panel Parameters & Technical Information
16GA Weathering Steel
Technical Information
| Material | 16GA | A606-4 Weathering Steel |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 3 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Mill Steel - Naturally Weathering |
| Warranty | 1 year for MFG |
Panel Parameters & Technical Information
18GA Stainless Steel
Technical Information
| Material | 18 GA | 316 Stainless Steel |
| System Depth | 1-1/4" nominal standard, up to 3" |
| Material Weight | ≈ 3 lbs. / sf |
| Panel Joints | 5/8" nominal (1/8" - 1" available) |
| Material Finish | Polish, Brushed, Angel Hair, 2B |
| Warranty | 2 year for MFG |
Designer Resources
Created just for you.
-
All
-
Product Information
-
Details
-
Specifications
-
Color Charts
.png?width=300&name=premier%20technical%20product%20guide%20(2).png)
.png?width=300&name=select%20&%20lite%20technical%20product%20guide%20(1).png)
Origin Select & Lite
TECHNICAL PRODUCT GUIDE
.png?width=300&name=ctf%20details%20(1).png)
.png?width=300&name=ws%20specs%20(1).png)
.png?width=300&name=Painted%20Aluminum%20(2).png)
PVDF & FEVE
PAINTED ALUMINUM COLOR CHART
.png?width=300&name=Nedzink%20(6).png)
